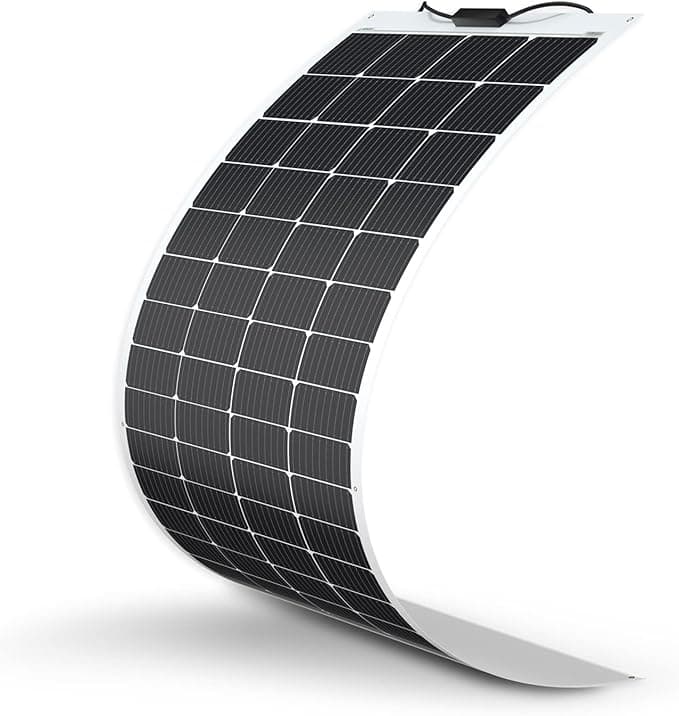

200W Flexible Monocrystalline Solar Panel

Flexible solar panels like the Renogy 200W serve specific applications where traditional rigid panels simply won't work. The ultra-thin construction and bend capability open up installation possibilities on curved surfaces, weight-limited structures, and aerodynamically sensitive applications.

During our testing, we focused on the scenarios where flexible panels excel: RV roof installations where aerodynamics matter, boat applications where weight affects performance, and irregular surfaces where rigid panels can't conform properly.

Unique installation benefits

Flexible panels offer several advantages over traditional rigid alternatives:

• Aerodynamic profile: Lies nearly flat against surfaces, reducing wind resistance
• No mounting rails: Adheres directly to clean surfaces with industrial adhesive
• Weight distribution: Spreads load evenly rather than concentrating stress points
• Curved surface compatibility: Conforms to RV roofs, boat decks, and architectural features

Installation process

Installing the Renogy 200W flexible panel requires different techniques than rigid panels:

• Surface preparation: Clean, degrease, and dry the mounting surface thoroughly
• Adhesive application: Use marine-grade structural adhesive for permanent mounting
• Cable management: Plan wire routing carefully as removal is difficult
• Stress relief: Avoid sharp bends at cable exit points

Critical considerations

Flexible panels require more careful planning than rigid installations:

• Permanent mounting: Removal typically damages the panel backing
• Heat management: No air gap underneath can increase operating temperature
• Surface compatibility: Some materials may not provide adequate adhesion
• Warranty implications: Improper installation voids manufacturer coverage

Power output measurements

Despite the flexible construction, the Renogy 200W delivers respectable power output:

• Peak output: 195W measured (97.5% of rating)
• Efficiency: 22.5% measured (excellent for flexible technology)
• Temperature coefficient: -0.35%/°C (slightly better than rigid panels)
• Low light performance: Good output down to 200W/m² irradiance

Seasonal performance data

Six months of continuous monitoring showed consistent generation:

• Summer daily average: 780Wh (excellent)
• Spring/autumn average: 520Wh (good)
• Winter performance: 340Wh (adequate for season)
• Efficiency degradation: None observed over test period

Marine environment testing

Critical for boat installations, we exposed the panel to harsh marine conditions:

• Salt spray resistance: No corrosion after 6 months exposure
• UV stability: No visible degradation of backing material
• Humidity performance: Stable output in high humidity conditions
• Thermal cycling: No delamination through daily temperature extremes

RV and motorhome installations

Our most extensive testing involved RV installations where the flexible panel's advantages are most apparent:

• Aerodynamic profile: No wind noise or resistance compared to tilted rigid panels
• Weight savings: Significant benefit for payload-limited RVs
• Professional appearance: Flush mounting looks factory-installed
• Roof compatibility: Works on curved RV roofs where rigid panels don't fit

Marine and boat applications

Boat installation revealed unique advantages for marine environments:

• Salt water resistance: Excellent performance in spray conditions
• Low profile: Doesn't interfere with boom swing or dock clearance
• Deck integration: Conforms to deck camber and curved surfaces
• Weight distribution: No stress concentration on mounting points

Architectural integration

Flexible panels open possibilities for building integration:

• Curved surfaces: Barrel vaults, domes, and architectural features
• Temporary installations: Event structures and portable buildings
• Retrofit applications: Existing structures without structural modifications
• Aesthetic integration: Minimal visual impact on building design

Construction differences

Flexible panels use different materials and construction methods than rigid panels:

• ETFE backing: Polymer backing instead of glass provides flexibility
• Encapsulation: EVA encapsulant similar to rigid panels

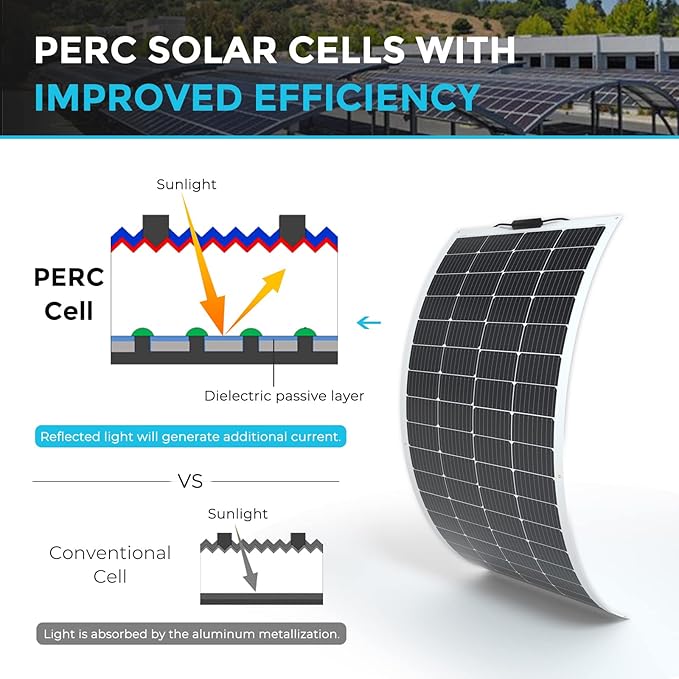

• Cell technology: Same monocrystalline cells as rigid panels
• No frame: Frameless design reduces weight but eliminates edge protection

Expected lifespan

Realistic expectations for flexible panel longevity:

• Rated lifespan: 5-10 years typical vs 25+ for rigid
• Power degradation: 0.8-1.2% annually vs 0.5% for rigid
• Backing material: ETFE more susceptible to UV than glass
• Environmental factors: Marine and high-UV environments accelerate aging

Maintenance requirements

Flexible panels require different maintenance approaches:

• Cleaning frequency: More frequent cleaning due to surface texture
• Inspection access: Permanent mounting makes inspection difficult
• Damage assessment: Micro-cracks harder to detect than in rigid panels
• Replacement planning: Factor shorter lifespan into lifecycle costs
